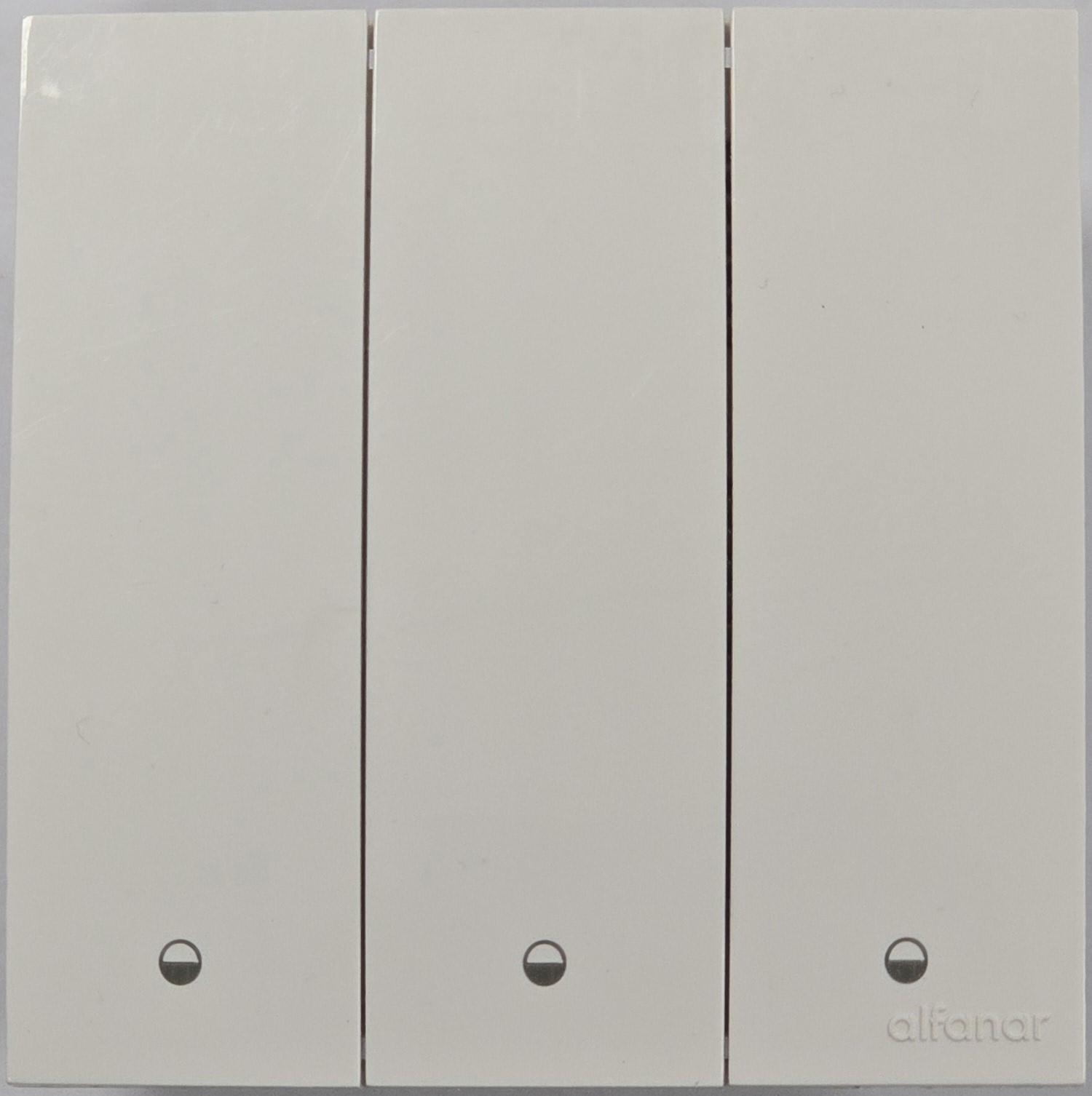

MASA Smart Dimmer

Name

MASA Smart Dimmer

Brand

alfanar

Texts

ID Description Value 8

Features

Feature Values Firmware Updatable

Documents

Category File Adv_Manual

Role type

ROLE_TYPE_END_NODE_ALWAYS_ON

User icon

0x1C01

Categories

Dimming Lighting Devices

Product id

0x0004

S2 classes

S2_AUTHENTICATED, S2_UNAUTHENTICATED

Device type

Multilevel Switch DT

Oem version

HW: 01 FW: 01.04:02.05:01.03

Library type

END_NODE_ENHANCED_232

Product line

Smart Switch

Supports nwi

Yes

Installer icon

0x0601

Z wave version

7.22.0

Frequency plans

EU: 869.85MHz, 868.40MHz

Manufacturer id

0x0469

Product type id

0x0004

Long description

MASA smart dimmers are designed primarily for lighting control applications and can be used with a variety of light sources, including conventional incandescent & LED lamps. Operation can be performed via a physical push (toggle) button or remotely through alfanar Smart Home (mobile application) connected to an alfanar Z-Wave enabled gateway (or alfanar listed gateway). The dimmer uses Z-Wave 800-series communication technology, operating on a mesh network with AES-128 encryption, ensuring a secure connection with an indoor range of up to 30 meters.

Hardware platform

EFR32ZG23A

Short description

The Alfanar MASA Dimmer employs Z-Wave® communication to efficiently control lighting in smart homes and buildings, facilitating seamless automation and convenient remote operation.

Product identifier

SZWRBF196

Countries / regions

Saudi Arabia, United Arab Emirates

Supports smart start

Yes

Certification number

ZC14-25040515

Radio range z wave (m)

40

Configuration parameters

Parameter Number Name Description Format Size Min Value Max Value Default Value 1

Supports explorer frames

Yes

Supported command classes

Identifier Name Key Version COMMAND_CLASS_ASSOCIATION_V2

Supported notification types

Notification Type Event / State Heat Alarm

Value updatable by consumer by rf neutral wire required value 1 switch load capacity volt ampere value 240 v~ switch type value push button switch load capacity current value 0.45 a association groups

Group Number Maximum Nodes Supported End Point ID Group Name Profile 1
