- Name
- KeyWe Smart Rim Lock
- Brand
- keyWe
- Features
- Feature Values Firmware Updatable
- Is flirs
- Yes
- Documents
- Category Description File Manual_Primary_Lang
- Role type
- ROLE_TYPE_SLAVE_SLEEPING_LISTENING
- User icon
- 0x0300
- Categories
- Locks
- Product id
- 0x0001
- S2 classes
- S2_AUTHENTICATED, S2_ACCESS_CONTROL
- Device type
- Lock
- Oem version
- HW: 1 FW: 1.00:01.00
- Library type
- SLAVE_ENHANCED_232
- Product line
- KeyWe
- Supports nwi
- Yes
- Installer icon
- 0x0300
- Z wave version
- 7.12.2
- Frequency plans
- KR: 920.90MHz, 921.70MHz, 923.10MHz
- Manufacturer id
- 0x037B
- Product type id
- 0x0010
- Long description

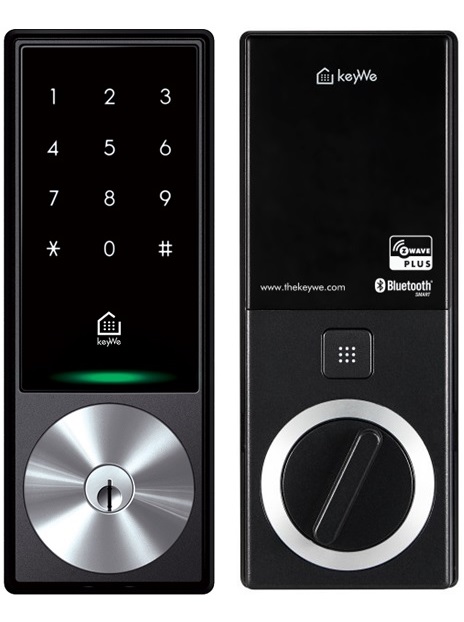

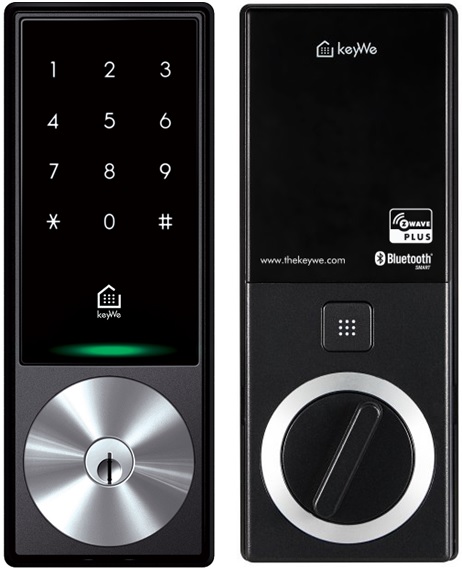

- The GKDL-5100Z is a smart lock that can be conveniently used with Z-Wave and Bluetooth. You can control the door lock directly from the phone via the Bluetooth function in close range. You can also check the status of the door lock on the outside by connecting to the Z-Wave hub.
- Hardware platform
- ZGM130
- Short description
- Smart lock that can be used conveniently with Z-Wave and Bluetooth.
- Product identifier
- GKDL-5100Z
- Countries / regions
- Taiwan, Singapore, Republic of Korea, Thailand
- Supports smart start
- Yes
- Certification number
- ZC12-20080114
- Radio range z wave (m)
- 40
- Configuration parameters
- Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1
- Supports explorer frames
- Yes
- Supported command classes
- Identifier Name Key Version COMMAND_CLASS_CONFIGURATION_V4
- Supported notification types
- Notification Type Event / State Access Control
- Value updatable by consumer by rf battery type value aa color value dark gray communications connections value bluetooth communications protocol value manufacturer proprietary protocol door lock type value deadbolt motor attachment battery quantity value 4 association groups
- Group Number Maximum Nodes Supported End Point ID Group Name Description 1
- From to description 1 0 it's value means mute. 2 0 it's value means normal volume. 3 0 it's value means loud volume. 2 door lock mode it means door lock’s locking mode(auto/manual) 2 1 1 2 1 from to description 1 0 it's value means door lock auto mode. 2 0 it's value means door lock manual mode. texts
- ID Description Value 8
