- Name

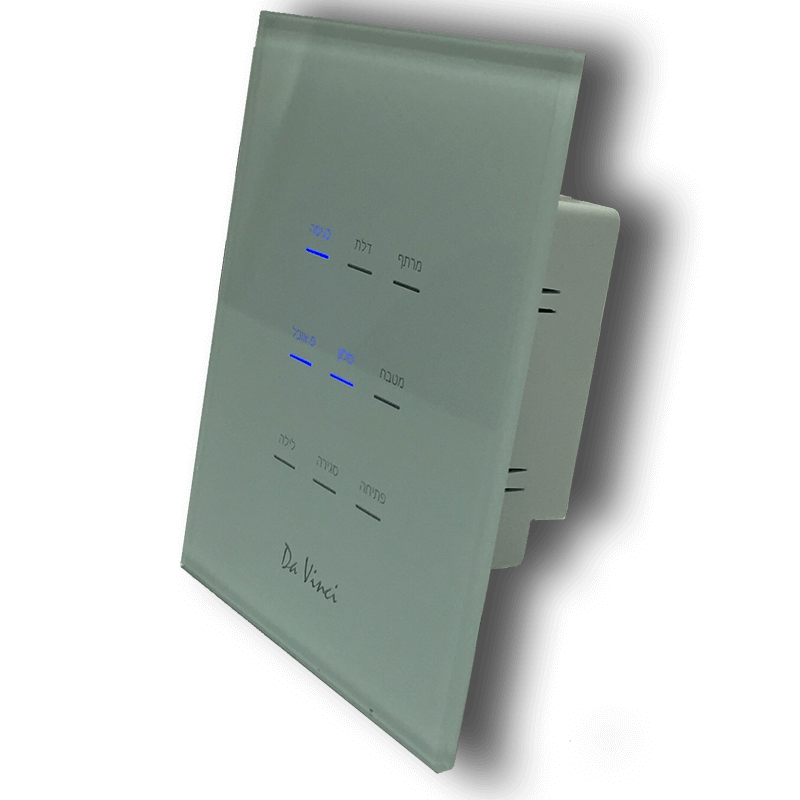

- Da Vinci Wall Controller
- Brand
- Contec - intelligent housing
- Features
- Feature Values Switch Type
- Documents
- Category Description File Manual_Primary_Lang
- Role type
- ROLE_TYPE_SLAVE_ALWAYS_ON
- User icon
- 0x1600
- Categories
- Window Covering
- Product id
- 0x0100
- Device type
- Wall Controller
- Oem version
- HW: 1 FW: 6.33:02.00
- Library type
- SLAVE_ENHANCED_232
- Supports nwi
- Yes
- Installer icon
- 0x1600
- Z wave version
- 6.51.08
- Frequency plans
- ANZ: 919.80MHz, 921.40MHz
- Manufacturer id
- 0x025D
- Product type id
- 0x0100
- Long description
- The Da Vinci wall controller is a Multi Chanel Z-Wave device that contains up to 6 relays and up to 9 touch buttons that can be set to control either the relays (On/Off switches and shutters) or any other on/off (SWITCH_BINARY) , shutter (MULTILEVEL_SWITCH) Z-Wave device.
- Hardware platform
- ZM5202
- Short description
- High voltage in wall controller
- Product identifier
- Da Vinci v4
- Countries / regions
- Australia
- Certification number
- ZC10-16065118
- Radio range z wave (m)
- 40
- Configuration parameters
- Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 5
- Supports explorer frames
- Yes
- Controlled command classes
- Identifier Name Key Version COMMAND_CLASS_SWITCH_BINARY
- Value decorator paddle push with indicator window covering control features value endpoint aware position aware supports vertical blinds supports up/down motion association groups
- Group Number Maximum Nodes Supported End Point ID Description 23
