- Name

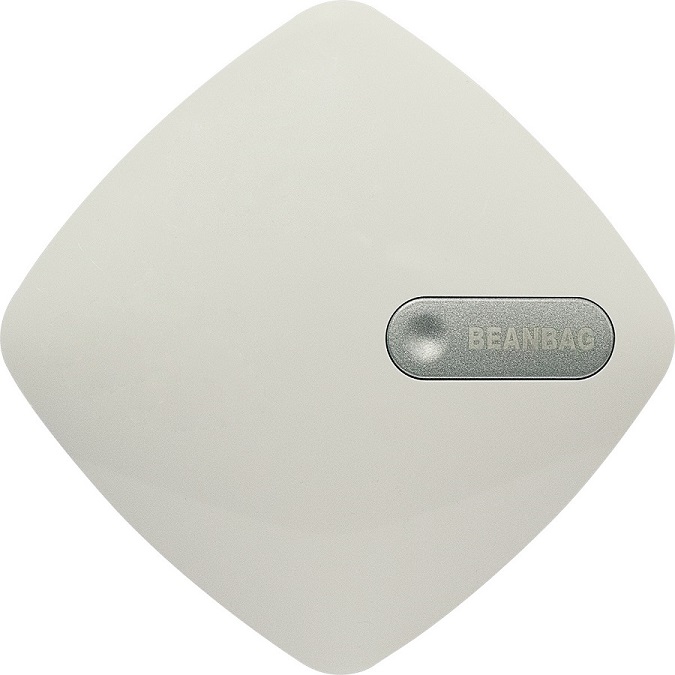

- Beanbag Thermostat Receiver
- Brand
- Beanbag
- Features
- Feature Values Switch Type
- Documents
- Category Description File Manual_Primary_Lang
- Role type
- ROLE_TYPE_SLAVE_ALWAYS_ON
- User icon
- 0x1200
- Categories
- Thermostats, All Lighting Devices, On/Off Switches/Devices, HVAC
- Product id
- 0x0001
- Device type
- Thermostat - HVAC
- Oem version
- HW: 2 FW: 2.00
- Library type
- SLAVE_ENHANCED_232
- Supports nwi
- Yes
- Installer icon
- 0x1200
- Z wave version
- 6.61.00
- Frequency plans
- EU: 869.85MHz, 868.40MHz
- Manufacturer id
- 0x0059
- Product type id
- 0x0014
- Long description
- The Beanbag receiver is a wireless two-channel thermostat / programmer, which can be used to control the heating and hot water system. Channel 1 is used for heating with Channel 2 being used for heating or hot water. Contact rating is 3A 230V AC, 1 A reactive. The receiver is mains powered 230V AC 50Hz only. A 7 day schedule facility is possible; each day can have different times and temperatures. TPI control is provided for Gas, Oil or Electrical Boilers with 3, 6 or 9 cycles per hour respectively. A one day override (on or off) facility is provided for heating and hot water. Thermostat failsafe is covered with the provision of a backup temperature sensor. The receiver is wall mounted using a plate with an optional facia plate; it is push on / pull off with the provision of a safety cover to ensure no mains access when removed. An optional surface wiring plate is also provided. Enclosure protection is to IP30 with an operating temperature range of 0⁰C to 40⁰C.
- Hardware platform
- ZM5202
- Short description
- The Beanbag Receiver is mains powered wireless two-channel programmable thermostat / programmer, which controls the space heating and hot water system. It also provides a boost facility for Beanbag heat and hot water.
- Product identifier
- MAX10Z-737
- Countries / regions
- European Union
- Certification number
- ZC10-17055592
- Configuration parameters
- Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 3
- Supports explorer frames
- Yes
- Supported command classes
- Identifier Name Key Version COMMAND_CLASS_POWERLEVEL
- Controlled command classes
- Identifier Name Key Version COMMAND_CLASS_TIME
- Supported multilevel sensors
- Multilevel Sensor Type Air temperature
- Value push button switch load capacity current value 3 amp loads controlled value 2 thermostat modes value heat color value white neutral wire required firmware updatable value updatable by consumer by rf thermostat hvac systems supported value heat only sensors value air temperature association groups
- Group Number Maximum Nodes Supported End Point ID Description 1
- From to description 10 120 in minutes. 4 relay state on power (switch endpoint only) relay state on every power up (for binary switch endpoint 2). 0: relay off 1: relay on 0 1 0 0 0 from to description 0 1 boolean. 5 dynamic endpoint 2 device type dynamic endpoint 2 device type 0: thermostat 1: binary switch 0 1 0 0 0 from to description 0 1 value 0 = thermostat, 1 = binary switch 6 time sync time sync (minutes past midnight, in 2 minute intervals) 0 1 0 0 65 from to description 60 120 in 2 minutes steps. 7 heating tpi cycle heating tpi cycle 1: 3 cycles per hour 2: 6 cycles per hour 3: 9 cycles per hour 4: 12 cycles per hour 0 1 0 0 2 from to description 1 4 value 1 = 3 cycles per hour, 2 = 6 cycles per hour, 3 = 9 cycles per hour and 4 = 12 cycles per hour texts
- ID Description Value 5
