Connectair Module — Connectair — Off Screen Space

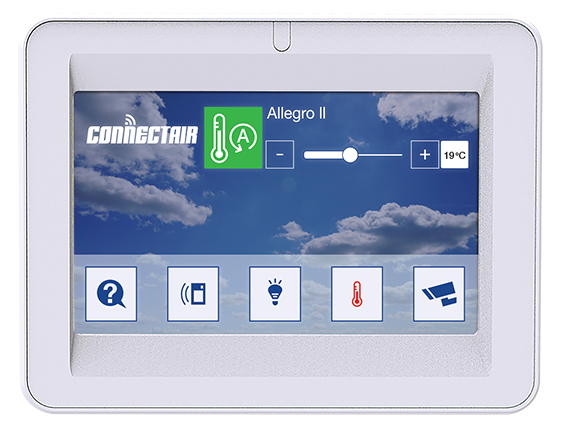

Control your Convectair heating With the Connectair Module integrated into your Convectair heater, adjust the comfort of your home according to your schedule and lifestyle, all at a distance and at all times. Once included in the ecosystem, the Connectair app and Controller allow you to control and make changes to your heating mode. Set your heaters to Comfort, Eco, Frost-protection or Standby mode, and then adjust the temperature setting as needed. It is also possible to locally change the set temperature of your heater by using the + and - buttons directly on the Connectair Module. Convectair compatible heaters The Connectair Module is currently compatible with Allegro II models. The Apéro (240V only) can also receive the information of the Module if it is connected by pilot wire to an Allegro II having the Module included. An open and flexible ecosystem The Connectair Module uses Z-Wave Plus technology, the most widely used wireless communication system in the world of connected objects. It is through this protocol that the Module communicates with the Connectair Controller. Secure Z-Wave Plus, the protocol used by Connectair is highly secure to protect communication between connected devices and the Controller. Moreover, Connectair uses the latest version of the Z-Wave library, the most secure on the market. The Connectair Module is equipped with a manual switch to prevent anyone from remotely shutting down the Convectair heaters. When turned on, this switch blocks the Standby mode. Inclusion The inclusion steps for the Module are simple and intuitive. In three clicks, your Module will be ready to be included into the ecosystem. Once included in the ecosystem, your heater will be controllable like the rest of the connected devices and subject to ecosystem features such as the scenarios. The Convectair warranty • 2 years against all manufacturing defects Due to our commitment to research and development, we reserve the right to change specifications without notice.

More specs

Name: Connectair Module
Brand: Connectair
Texts: ID Description Value 1
Features: Feature Values Color
Documents: Category Description File Manual_Primary_Lang
Role type: ROLE_TYPE_SLAVE_ALWAYS_ON
User icon: 0x1200
Categories: Thermostats
Product id: 0x0101
S2 classes: S2_UNAUTHENTICATED
Device type: Thermostat - HVAC
Oem version: HW: 255 FW: 1.02:01.00
Library type: SLAVE_ENHANCED_232
Supports nwi: Yes
Installer icon: 0x1200
Z wave version: 6.71.03
Frequency plans: US: 916.00MHz, 908.40MHz
Manufacturer id: 0x0369
Product type id: 0x0100
Long description: Control your Convectair heating With the Connectair Module integrated into your Convectair heater, adjust the comfort of your home according to your schedule and lifestyle, all at a distance and at all times. Once included in the ecosystem, the Connectair app and Controller allow you to control and make changes to your heating mode. Set your heaters to Comfort, Eco, Frost-protection or Standby mode, and then adjust the temperature setting as needed. It is also possible to locally change the set temperature of your heater by using the + and - buttons directly on the Connectair Module. Convectair compatible heaters The Connectair Module is currently compatible with Allegro II models. The Apéro (240V only) can also receive the information of the Module if it is connected by pilot wire to an Allegro II having the Module included. An open and flexible ecosystem The Connectair Module uses Z-Wave Plus technology, the most widely used wireless communication system in the world of connected objects. It is through this protocol that the Module communicates with the Connectair Controller. Secure Z-Wave Plus, the protocol used by Connectair is highly secure to protect communication between connected devices and the Controller. Moreover, Connectair uses the latest version of the Z-Wave library, the most secure on the market. The Connectair Module is equipped with a manual switch to prevent anyone from remotely shutting down the Convectair heaters. When turned on, this switch blocks the Standby mode. Inclusion The inclusion steps for the Module are simple and intuitive. In three clicks, your Module will be ready to be included into the ecosystem. Once included in the ecosystem, your heater will be controllable like the rest of the connected devices and subject to ecosystem features such as the scenarios. The Convectair warranty • 2 years against all manufacturing defects Due to our commitment to research and development, we reserve the right to change specifications without notice.
Hardware platform: ZM5202
Short description: Connects Convectair's compatible heaters to the Connectair ecosystem, in complete simplicity. The Connectair Module is currently compatible with ConvectAir's Allegro II models.
Product identifier: 7440-MC-FS
Countries / regions: United States of America
Certification number: ZC10-18066148
Radio range z wave (m): 40
Supports explorer frames: Yes
Supported command classes: Identifier Name Key Version COMMAND_CLASS_POWERLEVEL
Value white thermostat modes value heat auxiliary/emergency heat energy save heat thermostat power source value mains powered (120 v/240 v) association groups: Group Number Maximum Nodes Supported End Point ID Description 1
