- Name

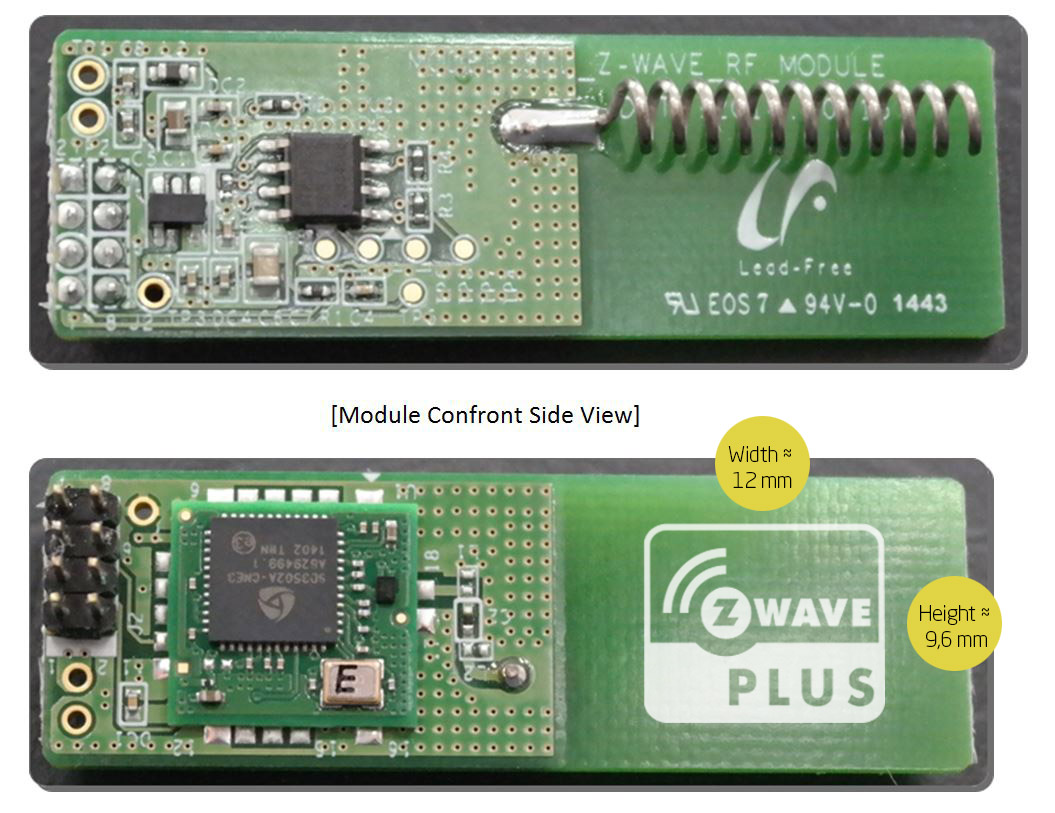

- ID Lock 150 Z-Wave module
- Brand
- ID Lock
- Features
- Feature Values Door Lock Type
- Is flirs
- Yes
- Documents
- Category Description File Manual_Primary_Lang
- Role type
- ROLE_TYPE_SLAVE_SLEEPING_LISTENING
- User icon
- 0x0300
- Categories
- Locks
- Product id
- 0x0001
- Device type
- Door Lock - Keypad
- Oem version
- HW: 1 FW: 1.06:01.71
- Library type
- SLAVE_ENHANCED_232
- Supports nwi
- Yes
- Installer icon
- 0x0300
- Z wave version
- 6.51.06
- Frequency plans
- EU: 869.85MHz, 868.40MHz
- Manufacturer id
- 0x0373
- Product type id
- 0x0003
- Long description
- A module enabling your ID Lock digital door lock to a Z-Wave Plus enabled digital door Lock. The module is compatible with ID Lock 150. It enables your ID Lock to operate in a Z-Wave network with numerous access control funtions and notifications.
- Hardware platform
- ZM5202
- Short description
- Z-Wave Plus module compatible with ID Lock 150 digital door lock. Z-Wave firmware version 1.6. Door lock firmware => 1.4.7
- Product identifier
- ID-150
- Countries / regions
- European Union
- Certification number
- ZC10-19066550
- Configuration parameters
- Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 5
- Supports explorer frames
- Yes
- Supported command classes
- Identifier Name Key Version COMMAND_CLASS_POWERLEVEL
- Supported multilevel sensors
- Multilevel Sensor Type Air temperature
- Supported notification types
- Notification Type Event / State Access Control
- Value deadbolt motor attachment firmware updatable value updatable by consumer by rf supported notification types value access control home security emergency alarm battery quantity value 4x or 8x battery type value aa color value dark green ip (ingress protection) rated outdoor use sensors value air temperature open/closed (binary) voltage rf signal strength association groups
- Group Number Maximum Nodes Supported End Point ID Description 1
- From to description 0 0 re lock mode off 1 1 re lock mode on 6 service pin mode the service pin on id lock 150 will be enabled or disabled according to this configuration setting. by default the service pin mode is 0=deactivated. it can be set to either 1, 2, 5 or 10 times, 12 hours, 24 hours, always valid or disabled (fe). service pin is identifier 108. 0 1 0 0 0 from to description 0 0 deactivated 1 1 valid 1 time 2 2 valid 2 times 3 3 valid 5 times 4 4 valid 10 times 7 7 always valid 8 8 valid 12 hours 9 9 valid 24 hours 3 hinge direction (right or left) direction of hinges on door. to find your correct settings look at the mounted door lock outside. if the door hinges are on the right side of the door correct setting is "right". if the door hinges are on the left side of the door correct setting is "left". 0 1 0 0 0 from to description 0 0 right hinged door 1 1 left hinged door 4 door lock audio volume setting for audio volume of notifications on door lock operations. 0 1 0 0 5 from to description 0 6 sound volume level 0 to 6 9 master pin mode turns on or off master pin unlock capability. master pin is identifier 109. 0 1 0 0 1 from to description 0 0 master pin cannot unlock 1 1 master pin unlocks 7 door lock model this configuration is only available through the configuration get command. if the configuration report is 65(101), door lock model type is id lock 101. if the configuration report is 96(150), door lock model type is id lock 150. id lock 101 cannot have user pins or individually deleted rfid keyfobs. id lock 101 cannot have service pin mode (mode on id 101 is always on). id lock 101 cannot be remote configured on volume, hinge direction. id lock 101 does not have the re lock function (mod on id 101 is always on). this is a read only parameter, it cannot be changed. 0 1 0 0 96 from to description 65 65 id lock 101 96 96 id lock 150 8 updater mode updater mode turns on or off possibility to use the id lock 150 updater app. turns off when unlocking the door. 0 1 0 0 0 from to description 0 0 updater mode off (silent) 1 1 updater mode on (silent) 2 2 updater mode off (audible) 3 3 updater mode on (audible) 1 away and lock mode away mode off or on auto or manual lock mode in auto lock mode the door locks three seconds after closing the door. in manual lock mode the door locks when pressing o/c button or activating touchpanel. when away mode is on the inside o/c button is deactivated. 0 1 0 0 1 from to description 2 2 away mode on manual lock mode 3 3 away mode on auto lock mode 0 0 away mode off manual lock mode 1 1 away mode off auto lock mode texts
