- Name

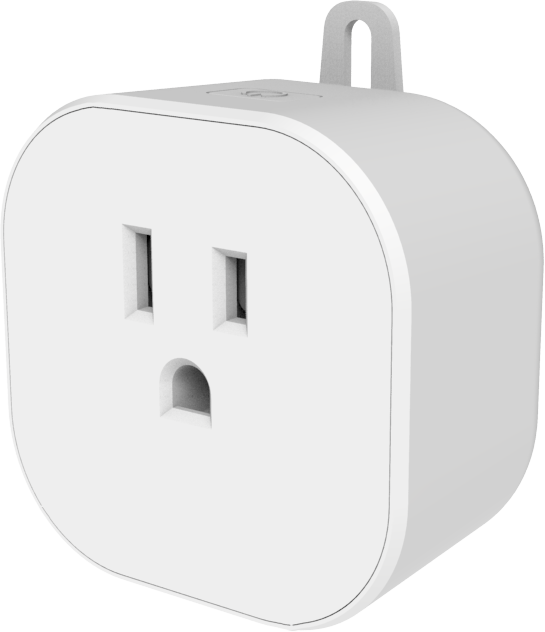

- Smart Plug In Dimmer
- Brand
- Johnson Controls
- Features
- Feature Values Color
- Documents
- Category Description File Manual_Primary_Lang
- Role type
- ROLE_TYPE_SLAVE_ALWAYS_ON
- User icon
- 0x0600
- Categories
- All Lighting Devices, Dimming Lighting Devices, On/Off Switches/Devices, Lighting Accessories
- Product id
- 0x3034
- S2 classes
- S2_UNAUTHENTICATED, S2_AUTHENTICATED
- Device type
- Multilevel Switch
- Oem version
- HW: 1 FW: 7.03
- Library type
- SLAVE_ENHANCED_232
- Product line
- Smart Home
- Supports nwi
- Yes
- Installer icon
- 0x0601
- Z wave version
- 7.13.6
- Frequency plans
- US: 916.00MHz, 908.40MHz
- Manufacturer id
- 0x012A
- Product type id
- 0x4744
- Long description
- Make any outlet smarter! • Works with incandescent and most dimmable florescent (CFL), or LED lighting • 700 Series Z-Wave module • LED to indicate ON/OFF status • Remotely or manually turns ON or OFF, or DIM lights • Controls light fixtures up to 300W incandescent and 65W Dimmable LED/CFL • Z-Wave Plus Certified (QR code on bottom of device) • Safety tab to secure unit to AC outlet • Compact design - does not block 2nd AC outlet • Supports Network Wide Inclusion (through a repeater) • Works as Z-Wave Repeater • Create rules to automate lights & scenes
- Hardware platform
- ZGM130
- Short description
- Make any outlet smarter with the new IQ Dimmer using the 700 series Z-Wave module
- Product identifier
- IQ Dimmer
- Countries / regions
- United States of America
- Supports smart start
- Yes
- Certification number
- ZC12-21030202
- Radio range z wave (m)
- 40
- Configuration parameters
- Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 11
- Supports explorer frames
- Yes
- Supported command classes
- Identifier Name Key Version COMMAND_CLASS_CONFIGURATION_V4
- Supported multilevel sensors
- Multilevel Sensor Type Illuminance
- Supported notification types
- Notification Type Event / State Power Management
- Supported / controlled meter types
- Meter Type Rate Type Description Electric meter
- Value white electric load type value incandescent dimmable led dimmable fluorescent firmware updatable value updatable by consumer by rf outdoor use switch load capacity current value 2.5 a switch load capacity watts value 300 w incandescent, 65 w dimmable cfl/led association groups
- Group Number Maximum Nodes Supported End Point ID Group Name Profile Description 1
- From to description 0 90 valid values: 0 99, 0=no delay (instant on), 1=1 second 3 led mode indicator when value = 0, the led indicator will be off when the connected appliance is on, and the led indicator will be on when the connected appliance is off. if value = 1, the led indicator will be off when the connected appliance is off, and the led indicator will be on when the connected appliance is on. if value = 2, the led indicator will be always off regardless of the load status. 1 1 0 2 0 from to description 0 2 when value = 0, the led indicator will be off when the connected appliance is on, and the led indicator will be on when the connected appliance is off. if value = 1, the led indicator will be off when the connected appliance is off, and the led indicator will be on when the connected appliance is on. if value = 2, the led indicator will be always off regardless of the load status. texts
- ID Description Value 8
